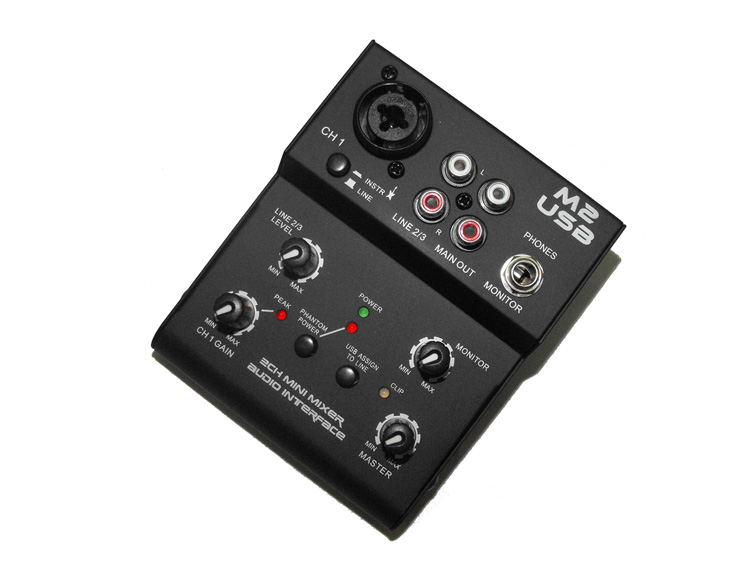

USB AUDIO INTERFACE/PRO COMPACT MIXER <DIV>FEATURES</DIV><DIV>RECORD AND CONNECT</DIV><DIV>TO PC: This personal mixer has a USB soundcard and</DIV><DIV>RE interte to reor and cnnet to MAC or PC and i has uivresal dgtat audio</DIV><DIV>aue cmaptbitt Can be used by bginerse or studio plosesa aplicai</DIV><DIV>LoW NOISE DESIN: This prtable 2channelDJ console cntrolor mixer has</DIV><DIV>sonalouput hru he headphones. The LnelINSTR SW iputhsa sele switch</DIV><DIV>se. peakLEdD ights up when he nput ignal of Ch1 is t00 high</DIV><DIV>MULTIPLE CONNECTIVITY: Caters to mltiple devices with its combo input female</DIV><DIV>XLR and % phone jack for microphone, line 312 stereo inputs RCAPlugs to cnet</DIV><DIV>CD, Mp3 and layrs. AIso has main output plug for mixers, receivers or amplifers</DIV><DIV>INDEPENDENT CONTROLS: The recording mixer has line 2/3 level to control and</DIV><DIV>adjust volume of signal input line 0. Master control is the mixer's overall cnrtrllre.</DIV><DIV>There's even a clip Led light that lights up when the main output is too high and more</DIV><DIV>18V PHANTOM POWER: For reliable power source, this DJ mixer comes with an</DIV><DIV>18V Phantom power supply. There's a Phantom Power Supply on the XLR connector</DIV><DIV>Of Ch1 and the Phantom Led Indicates that the Phantom Power is on</DIV><DIV>Phantom Led Indicates That Phantom Power Is On</DIV><DIV>Phantom Power Supply On The XLR Connector Of Ch1</DIV><DIV>Master Lets You Control Mixer's Overall Volume LevelThis 2-channel mini-mixer</DIV><DIV>is like a portable recording studio to connect CDs, MP3, and tape deck players. It</DIV><DIV>also accepts two inputs, one via combo 1/4" and XLR jack, the other via stereo</DIV><DIV>RCA jacks, So it's easy to connect. LEDs show you power and clipping levels.</DIV><DIV>They are suited for musicians, DJs, and entertainers as well as houses of</DIV><DIV>worship, discos, and pubs.</DIV><DIV>Combo Input Connector Female/XLR And %4 " Phone Jack For MIC/Line Inputs.</DIV><DIV>Line 3/2 Stereo Line Inputs RCA Plugs,To Connect Cd, Mp3 Tape Deck, Players.</DIV><DIV>Main Out RCAPlugs To Connect The Mixer, Receiver Or Amplifier.</DIV><DIV>Signal Output Thru The Headphones</DIV><DIV>Line/INSTR SW Input Select Switch Set</DIV><DIV>Line 2/3 Level This Control Adjusts The Volume Of Signal Input Of Line 2/3.</DIV><DIV>PeakLed tLights Up Went The Input Signal 0fCh1 Is Too High.</DIV><DIV>Ch1 Gain</DIV><DIV>This Contol Adjust The Volume of Signal Input 0fCh1.</DIV><DIV> </DIV><DIV> </DIV><DIV> </DIV><DIV> </DIV><DIV>DES.&SPECIFICATIONS</DIV><DIV>Frequency Response: 15Hz - 30kHz (+/-3 dB)</DIV><DIV>Total Harmonic Distortion:<0 05% @+4dBu, 1 kHz(Mono input)</DIV><DIV>Distortion:<0.01% @+4dBu, 1 kHz(Mono input)</DIV><DIV>Gain Range: OdBu, to 5dBu</DIV><DIV>Maximum Input Level: +12dBu (Mic input), + 14dBu (1/4" TRS Line input)</DIV><DIV>Maximum Output Level: +14dBu (Main Mix Outputs)，+13dBu (Monitor output)</DIV><DIV>Equivalent Input Level: -120dBu typical(XLR balanced,max gain)</DIV><DIV>Input lmpedance: 1.5Kohm(Microphone input)</DIV><DIV>220kohm;160kohm(Inst-HiZ),</DIV><DIV>Output Impedance: <1kohm (RCA connector),</DIV><DIV><500ohm (unbalanced 1/4")</DIV><DIV>100ohm(Monitor output)</DIV><DIV>CMRR:> 54 dB typical</DIV><DIV>Signal to Noise Ratio:> 90 dB typical (Ref 0 dBu)</DIV><DIV>Equivalent Input Noise: -120dBu typical (XLR bal., max gain), -100dBu typical 1/4</DIV><DIV>Maximum Gain (In to Main Out): +53dB (XLR)，+32dB (14)Ch1 input</DIV><DIV>+10dB (1/4") (Ch2-Ch3 inputs)</DIV><DIV>Maximum Gain (In to USB): +44dB (XLR), +23dB (1/4") (Ch1-Ch2 inputs)</DIV><DIV>Maximum Gain (USB to Out): +14dB (Main Mix outputs), +13dB (Monitor output)</DIV><DIV>Phantom Power Selectable: +18V DC, fltered, current limited</DIV><DIV>A/D-D/A:16 Bit, 4.1 kHz or 48 kHz, USB selectable from computer0.4 ms A/D latency @ 44.1 kHz</DIV><DIV>Power Requirements:5.0V DC @ <500 mA (external)or</DIV><DIV>USB bus powered @ 500 mA typical</DIV><DIV>Dimensions:1.6"x4.0"x4.75" (41mmx 101mmx 121mm)</DIV><DIV>Weight: 1.1 lbs (0.50 kg)</DIV>
|
