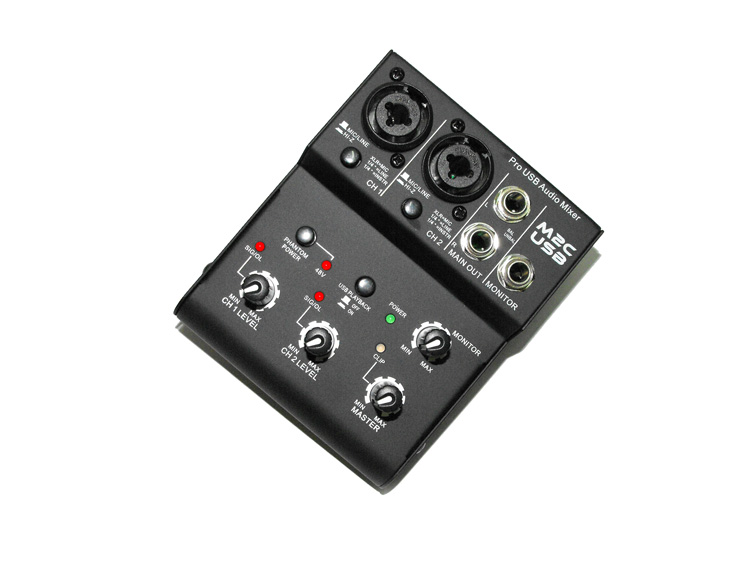

<DIV>FEATURES</DIV><DIV>USB powered, no external power supply needed when used with a computer</DIV><DIV>Balanced XLR or unbalanced 14-inch Instrument inputs with switchable impedance</DIV><DIV>Switchable low noise +48V phantom power</DIV><DIV>Balanced 1/4-inch TRS inputs for stereo or mono line-level sources</DIV><DIV>1/4-inch TRS output jacks work with balanced or unbalanced lines</DIV><DIV>Stereo 14-inch TRS headphone jack with independent level control for output</DIV><DIV>monitoring</DIV><DIV>Independent controls for both sets of inputs, main output, and headphone monitor</DIV><DIV>Green/Red LED signal/clip indicator</DIV><DIV>Switchable assignment of USB playback ON/OFF</DIV><DIV>USB 2.0 compliant USB cable, and Audacity recording software included</DIV><DIV>Combo Input Connector Female/XLRAnd %4”±Phone Jack For MIC/Line Inputs.</DIV><DIV>Line 3/2 Stereo Line Inputs RCA Plugs,To Connect Cd, Mp3 Tape Deck, Players.</DIV><DIV>Main Out RCA Plugs To Connect The Mixer, Receiver Or Amplifier.</DIV><DIV>Signal Output Thru The Headphones</DIV><DIV>Line/INSTR SW Input Select Switch Set</DIV><DIV>Line 2/3 Level This Control Adjusts The Volume Of Signal Input OfLine 2/3.</DIV><DIV>Peak Led It Lights Up Went The Input Signal Of Ch1 Is Too High.</DIV><DIV>Ch 1 Gain This Control Adjust The Volume Of Signal Input Of Ch1.</DIV><DIV>Phantom Power Supply On The XLR Connector Of Ch1.</DIV><DIV>Phantom Led Indicates That Phantom Power Is On.</DIV><DIV>USB Audio Interface</DIV><DIV>Master Lets You Control Mixer's Overall Volume Level</DIV><DIV>Clip Led Lights Up Went The Main Output Signal Is Too High</DIV><DIV>Monitor To Control Volume Output Of The Monitor Jack.</DIV><DIV>Power Led Indicates That The Unit Is In On Position.</DIV><DIV>Computer InterfaceUSB 2.0 compliant, Windows 7, Vista, XP, 2000, ME, 98SE</DIV><DIV>Mac 0S9.1 OS X computers with native USB support, Linux</DIV><DIV>Chassis Type AII steel black finish</DIV><DIV> </DIV><DIV> </DIV><DIV> </DIV><DIV> </DIV><DIV>DES.&SPECIFICATIONS</DIV><DIV>Frequency Response: 15Hz - 25kHz (+0, -1 dB)</DIV><DIV>Total Harmonic Distortion:<0. 05% @+4dBu, 1 kHz</DIV><DIV>Gain range: 0dBu to 50dBu</DIV><DIV>Maximum Input Level: +4dBu (XLR input), +14dBu (1/4" input)</DIV><DIV>Maximum Output Level: +14dBu (Main Mix Outputs)£¬+13dBu (Monitor output)</DIV><DIV>Equivalent Input Level: -120dBu typical(XLR balanced,max gain)</DIV><DIV>Input Connections: XLR balancedI 1/4" unbalanced</DIV><DIV> ”°Combo”±jack (Ch1-Ch2 inputS)</DIV><DIV>Output Connections: 1/4"TRS balanced (Main Mix outputs)</DIV><DIV> 1/4" TRS stereo (Monitor output)</DIV><DIV>Input lmpedance: 2.78K(Microphone input)</DIV><DIV>220kohm;1 60kohm(Inst-HiZ),</DIV><DIV>20kohm(Line) (Ch1-Ch2 1/4" inputs)</DIV><DIV>> 4kohm(Ch1 XLR input)</DIV><DIV>Output Impedance:<1kohm (balanced 1/4")</DIV><DIV><500ohm (unbalanced 1/4")</DIV><DIV>100hm(Monitor output)</DIV><DIV>CMRR:> 54 dB typical</DIV><DIV>Signal to Noise Ratio:> 90 dB typical (Ref 0 dBu)</DIV><DIV>Maximum Gain (In to Main Out): +53dB (XLR)£¬+32dB (1/4") Ch1 input</DIV><DIV>+10dB (1/4") (Ch2-Ch3 inputs)</DIV><DIV>Maximum Gain (In to USB): +44dB (XLR)£¬+23dB (1/4") (Ch1-Ch2 inputs)</DIV><DIV>Maximum Gain (USB to Out): +14dB (Main Mix outputs)£¬+13dB (Monitor output)</DIV><DIV>Phantom Power Selectable: +48V DC, fltered, current limited</DIV><DIV>A/D-DI/A: 16 Bit/44.1 kHz or 48 kHz, USB selectable from computer0.4 ms A/D latency @ 44.1 kHz</DIV><DIV>Power Requirements: 5.0V DC @ <500 mA (external) or</DIV><DIV>USB bus powered @ 150 mA typical</DIV><DIV>Dimensions; 100mm x 120mm X 35mm)</DIV><DIV>Weight: 1.05 Ibs (0.42 kg)</DIV>
|
