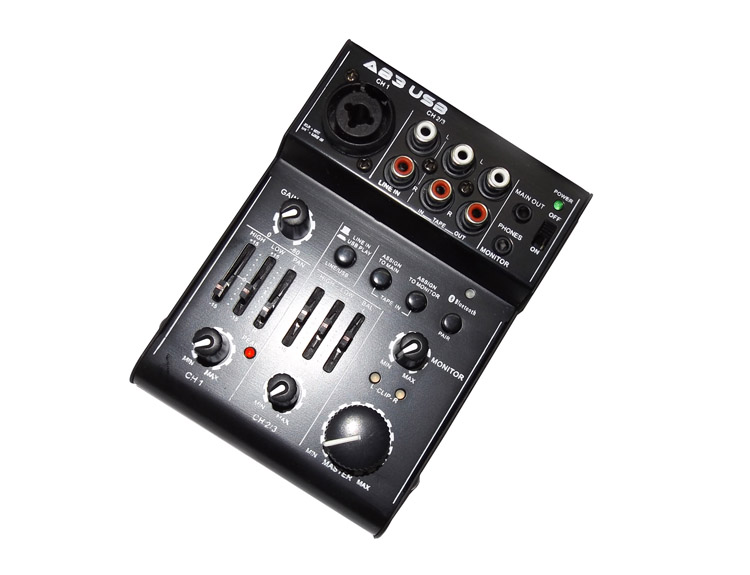

AB3USB

Sensitivity/ Impedance

  Mic: ………………………1mV/1.7KΩ(Gain max)

  Line, channel 1: ……….…3mV/12KΩ(Gain max)

  Line, channel 2/3: ………..150mV/22KΩ

  Tape in:  …………..….…200mV/22KΩ

        Output level: ………………5.8V max (MAIN; MONITOR; TAPE)

        Frequency range: ………….20 -25000 Hz

        THD: …………..……….…≤0.05%

        S/N ratio: …..…………..81dB (A weighted)

     Equalizer

        Bass range: ……………±15dB/80Hz

        High range: ……………±15dB/80Hz

     Headphone impedance: …..≥16Ω

     USB interface: ………..…USB1.1 compatible, USB2.0 full speed;

     16-Bit Delta-Sigma, 44.1kHz Sampling rates; 48khHz max,

     Bluetooth: ………..……Compliant with Bluetooth Specification V3.0 + EDR

     Phantom power for XLR jack: ……+18V

     Power supply:……………Via USB port(5V/500mA) of the computer or via power supply

     unit provided and connected to AC100-240V 50/60Hz

     Dimensions:…………….101*45*135 mm

     Weight: ………………..…430 g

Suitable operating system for data transfer via USB interface:

Windows 2000, XP or higher; Mac OS 9.0.4 or higher, 10.X or higher.

Windows is registered trademark of Microsoft Corporation in the USA and other countries.

Mac OS is registered trademark of Apple Computer Inc. in the USA and other countries.

Subject to technical modification.
