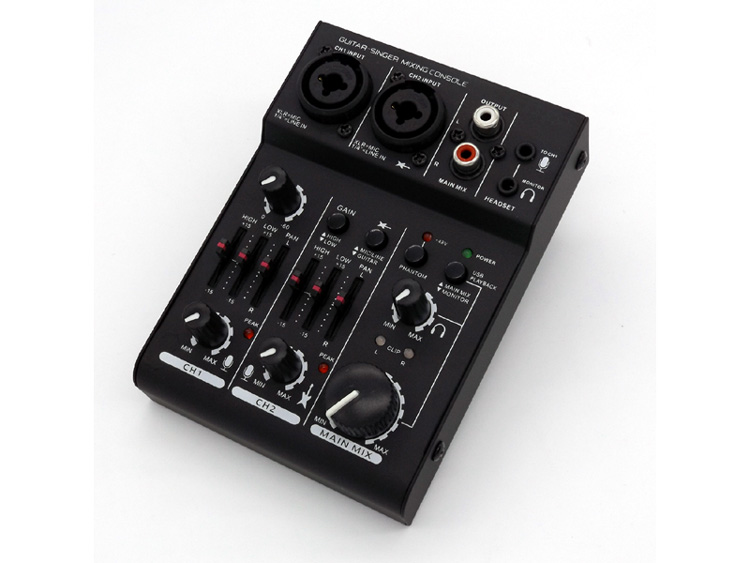

. <DIV>FEATURES </DIV><DIV>Super mini 2-channel mixing console designed for home stuido recording, network</DIV><DIV>live broadcast, karaoke, etc; 5V low voltage power supply design, can be powered</DIV><DIV>by computer or 5V power bank through the including USB cable, easy to carry and</DIV><DIV>convenient to use.</DIV><DIV>With two TRS & XLR combined mono inputs for connecting microphone, instrument</DIV><DIV>or other audio device; RCA(L &R) outputs for connecting amplifier or recorder;</DIV><DIV>3 5mm headset connection includes MIC IN and PHONES jack to avoid</DIV><DIV>unnecessary noise.</DIV><DIV>Each channel has 2-band EQ(High & Low), PAN(panorama/balanced) and level</DIV><DIV>controls; CH1 supports GAIN adjustment(0 to -60)£¬CH2 with GAIN switch to</DIV><DIV>determine the basic volume and GUITAR switch for switching the input impedance.</DIV><DIV>Supports +48V phantom power for condenser microphone; with USB PLAYBACK</DIV><DIV>switch assigns signal to MAIN MIX to MONITOR; with MONITOR/PHONES knob for</DIV><DIV>headphone output volume control and MAIN MIX knob for setting the level of the</DIV><DIV>output signal sent via the RCA outputs and the USB port</DIV><DIV>Integrated USB audio interface will be identified and addressed as an external</DIV><DIV>sound card when connected with computer, and audio data can be transferred</DIV><DIV>between the computer and the mixer.2 X Mono channel with XLR/ 6.3 mm combi</DIV><DIV>jack (Mic /Line)</DIV><DIV>Includes +48 V phantom power</DIV><DIV>1 X Stereo RCA output</DIV><DIV>3.5 mm jack headphone and microphone output</DIV><DIV>Level adjustment</DIV><DIV>2-Band tone control per channel and pan control</DIV><DIV>Gain and peak controls</DIV><DIV>USB audio interface</DIV><DIV>USB power and host</DIV><DIV> </DIV><DIV> </DIV><DIV> </DIV><DIV> </DIV><DIV>DES.&SPECIFICATIONS</DIV><DIV>Sensitivity/lmpedance</DIV><DIV>CH1, CH2 XLR: 2mv/1.8K (Gain max)</DIV><DIV>CH1, jack: 10mv/12K (LINE)</DIV><DIV>Line, channel 2:30mv/20 K (LINE);30mv240 K (GUITAR);</DIV><DIV>Outquency range: 5.8v max (MAIN;MONITOR)</DIV><DIV>Frequency range: 20- 22000Hz</DIV><DIV>THD:<0.05%</DIV><DIV>S/N ratio: 80dB(A weighted)</DIV><DIV>Equalizer</DIV><DIV>Bass range:Ê¿15DB/80Hz</DIV><DIV>High range: Ê¿15DB/12Hz</DIV><DIV>Headphone impedance: ¡Ý16</DIV><DIV>USB Interface : USB1.1 compatible, USB 2.0 full speed compliant</DIV><DIV>16-Bit Delta-sigma,44 1KHz Sampling rates;48KHz max ,ADC/DCA USB Input& Output</DIV><DIV>Phantom power: +48v</DIV><DIV>Power supply: Via USB potr(5v/500Ma)of the computer or</DIV><DIV>Via power supply unit provided and connected t0</DIV><DIV>AC 100-240V 50/60 Hz</DIV><DIV>Dimensions;135* 100* 35mm</DIV><DIV>Weight:450g</DIV>
|
